CTG-1000 SWR System-Wide Router Controller

A powerful control center for any size or configuration routing system, the CTG-1000 SWR supports all major router hardware types.

The system is created from the CTG-1000 Core Product by simply adding Switcher Control Task, Event Engine, and Error Monitoring modules to provide the following outstanding functions:

• Virtual re-entry (slaving of one output to another)


• User configuration of


  • source and destination names


  • virtual levels and matrix physical space


  • device lines


  • communication lines


  • control panels and their authorization


  • barred crosspoints and destination locks (restricted outputs)


  • event lists


• Use of area codes to allow routers to access others via trunking


• Event engine functions providing frame-accurate switching with no need for pre-cueing to the router


• Enhanced, sophisticated trunking capability


• Mnemonic and numeric source and destination names - up to 8 characters available for mnemonics, and an additional signal name description of up to 48 characters


• Execution of crosspoint takes on all or individual levels, and display of current crosspoint status


• Diagnostics facility with status display of all alarm points, user-configurable binary and analog alarm points, and audible and visual alarm during error condition


• Pre-roll/take-to-air of external video sources using DTMF and GPI commands.

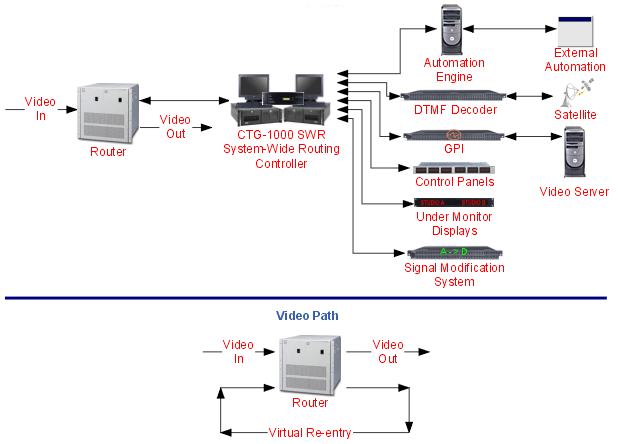

CTG-1000 System-Wide Router Controller Block Diagram

CTG-1000 System-Wide Router Controller Screen Samples

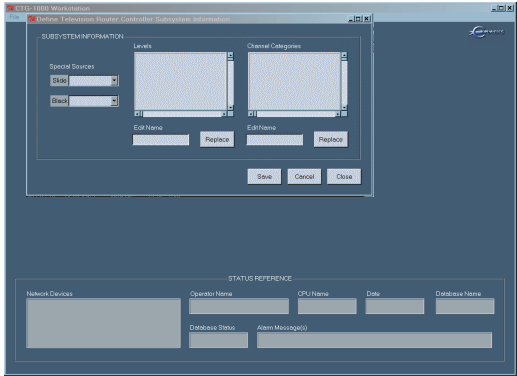

Setup and Edit SWR Subsystem Window

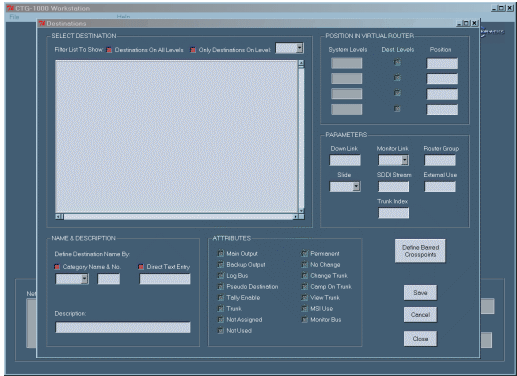

Setup and Edit Destinations Window

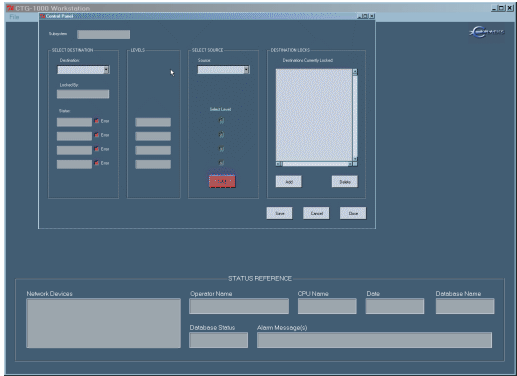

Crosspoint Control Panel Window
